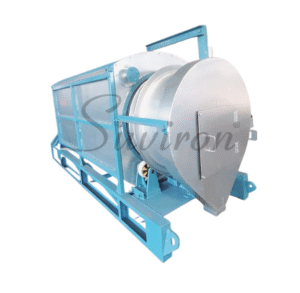

Rotary screen for hot raw sugar melt screening
Continuous melt screening is effected on a cylindrical screen drum mounted in horizontal position with appropriate slope towards non-drive end. Unlike in case of stationary parabolic screen the entire screening area provided in the rotary screen is fully utilized and hence maximum screening efficiency is achieved. The dynamic movement of screen allows utilization of smaller opening for removal of even the smallest foreign particle from melt liquor. The diameter, the length of the screen, the speed of the rotating screen and its inclination are suitably designed to facilitate complete drainage of the filtered melt liquor. As a standard accessory special design feature for cleaning the screen by application of hot water through flat cone nozzles is provided ensuring clean screen surface throughout the operation period.
A cylindrical rotary drum fabricated in stainless steel construction is fitted with rim located on either end for mounting the entire screen drum assembly on trunnions. Towards the driven end of the drum the driving sprocket is rigidly fixed on output shaft of gearbox and connected to driven sprocket mounted on rotating drum to transmit the power through heavy-duty chain arrangement. Thrust roller fitted at the non-drive end absorbs the lateral thrust developed by inclined rotating drum. The entire assembly of the drum along with its trunnions is mounted on rugged mild steel fabricated frame. Flat cone spray nozzles are fitted on pipeline header located on the framework of side cover hood to cover the entire length of screen.
Special features for handling hot sugar melt
Rotary Screen application : Special features for handling hot sugar melt:
In a normal milling plant the feed juice temperature is much below 35 – 40 deg. C and hence
the total Rotary juice screen assembly is of “open” feature, i.e. top and discharge end drums
are open to atmosphere.
However, in case of hot melt liquor to be handled by Rotary Screen it is essential to provide a “totally enclosed” melt collection trough and hood arrangement to avoid heat losses and to prevent subsequent reduction in temperature of melt liquor.
In order to prevent escaping of vapors, the Rotary Screen is provided with totally closed bolted top cover and totally enclosed feed end drum also of Stainless Steel 304 construction.
Other feature like auto screen washing arrangement is included.
